DC DC Power Boost Converter 10-22V to 24V, Voltage Converter 24V 10A 240W MAX, Power Transformer 12V to 24V Waterproof Boost Transformer for Automotive, LED Lights, Construction Sites, Tools

DC-DC converter: 12V to 24V 10A 240W MAXInput parameters: 1. rated input voltage: 10-22V2. transfer efficiency: 95%3, Input line: 15-16CM (R+ B-) Output parameters: 1, Output voltage: 24V2. output: 10A MAX3, Maximum output power: 240W MAX4. idle adjustment rate 2%5. load regulation 3%6. quiescent current loss ≤20MA7. output line 15-16CM(Y+ B-)Environmental parameters: 1. working temperature -20-65° 2. storage temperature -40-85°3. working humidity 10%-90%RH°Defense function:1. waterproof classification IP672. short circuit protection YES3. overheating protection YES4. overcurrent protection YESPlease read the safety instructions carefully to avoid leakage, explosion or fire1. do not use the appliance near a heat source such as a fire or heater2. do not connect the input cable to 220V electricity3. do not place the product in a fire or heat it up4. do not short-circuit the positive or negative pole of the device with wires or other metal objects5. non-professional personnel must not disassemble and repair the device themselves6. the product is not equipped with protection against reverse polarity of the input. Note that the positive and negative poles of the input must not be reversed and that reversing the polarity will result in permanent damage to the product7. storage: store the product in a dry and cool place with a temperature of -40℃ to 80℃, avoid contact with corrosive substances, and keep it away from fire and heat sources8. heat dissipation method：natural heat dissipation, no other equipment is required to assistPackage includes:1 x converter

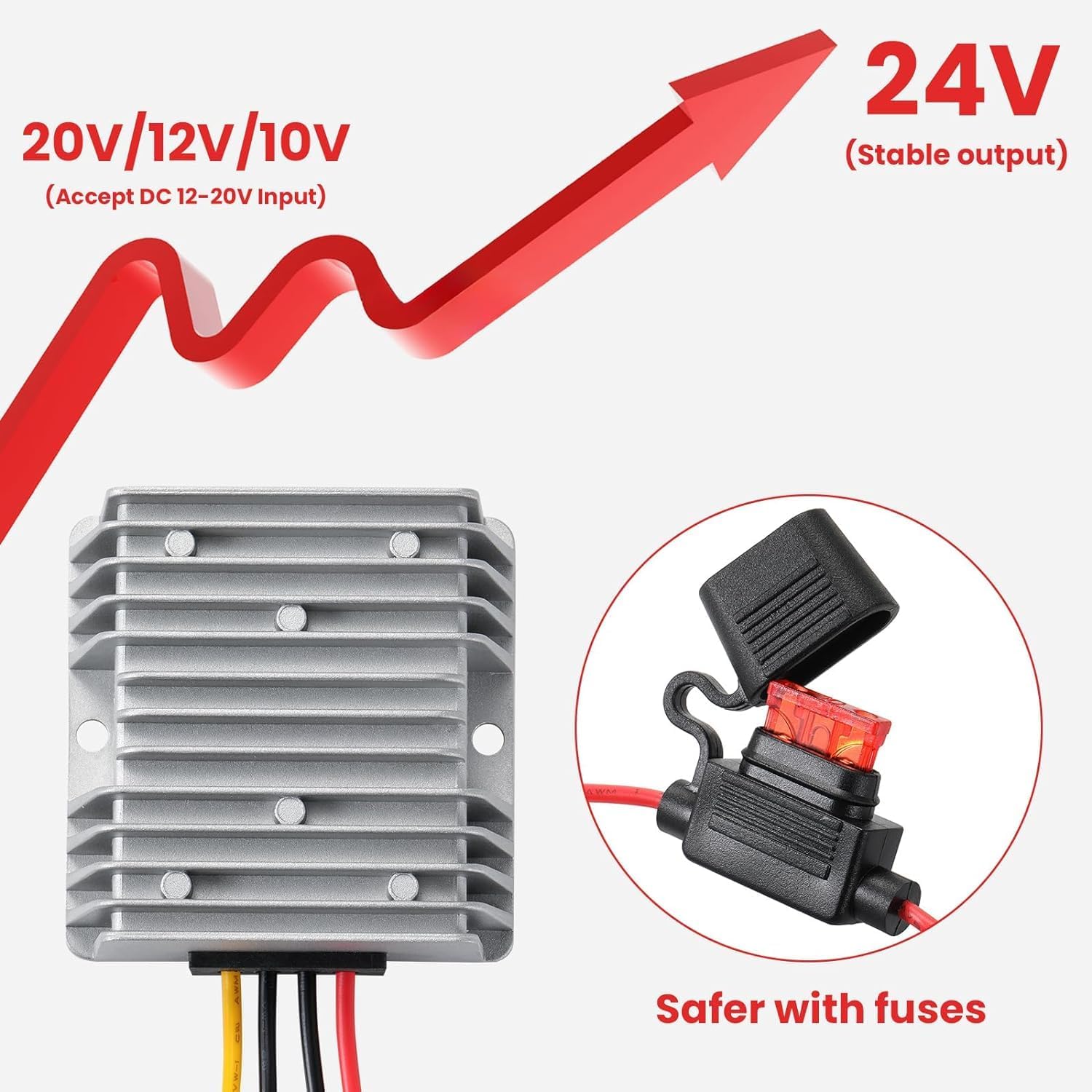

• Voltage Converter Features: Boosts DC 12V to 24V 10A 240W MAX, Transmission efficiency: 95%, Fixed output voltage, Our voltage converter is with junction box and fuse, which is safe, reliable and easy to use. When the voltage is too high, the circuit is faulty or abnormal, the fuse will blow and the transformer will shut down to protect the electrical appliances. This also reduces the risk of fire and explosion
• Heat Dissipation Performance：The12V voltage booster has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance
• Intelligent Protection：Assembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the12V power transfomer voltage
• Widely Application：The12V DC boost voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc
• Please Note：The load connected to the transformer converter output should not exceed the specified maximum load. Any greater load will damage the transform booster. The 12V DC boost power converter adapter does NOT have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product
